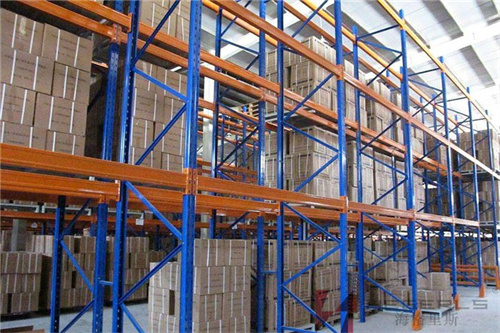

Heavy pallet shelf, also known as heavy beam type shelf, is one of the most widely used shelf varieties in the global storage industry. The main body is a frame structure composed of two major components, namely, column pieces and beams. Heavy pallet shelf is mainly a cargo position type shelf with pallets or similar containers as storage units. The design of shelf length and width is usually based on the specifications of pallets or containers used. In the warehouse, it is a kind of shelf that can achieve the maximum and high utilization rate, which can not only save costs but also increase the utilization rate of the warehouse. The use of storage equipment and forklift to cooperate with the operation of the heavy pallet shelf can better reflect the maximum use effect of the shelf in the warehouse, which can improve the work efficiency of the warehouse management personnel.

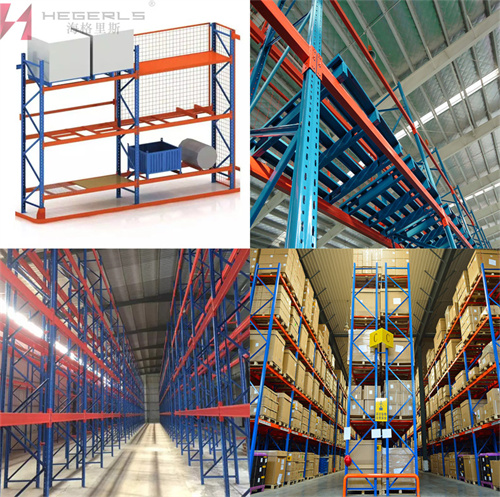

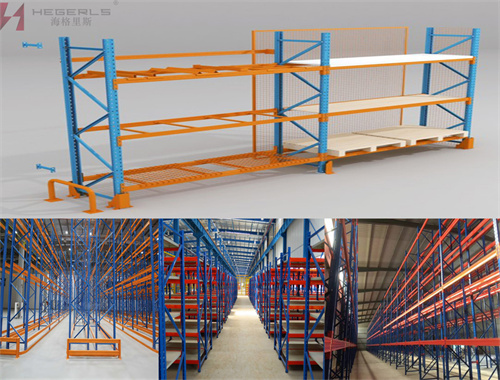

The heavy-duty pallet shelf belongs to the buckle type structure, the material is cold rolled steel, the surface is treated with anti-static powder spraying, and the main and sub frames can be connected indefinitely. The layer spacing is adjusted up and down with every 75mm as a unit. The shelf is equipped with safety pins and anchors, with good load-bearing capacity, flexible disassembly and assembly, and the height can reach 12m. It is flexible and convenient to access, simple in supporting equipment, cheap in cost, and can be quickly installed and disassembled, supplemented by computer management or control, It can basically meet the requirements of modern logistics system. In the heavy pallet shelf, the column and beam are designed in a plug-in combination, without screws, and the floor height can be freely adjusted with a spacing of 75mm; In actual use, pallet shelves are often equipped with some auxiliary parts to increase the practicality and safety of the shelves, such as cross beams, laminates, steel grids, back protection nets, anti-collision feet, and protective fences. According to the load-bearing requirements of the unit cargo space and the design height of the rack, the pallet rack provides a variety of profiles for design selection. It strictly provides users with high-quality and good product solutions based on the design principles of “safety” and “rationality”. In the storage rack, the structure of the pallet rack is relatively simple, so it is convenient to disassemble and assemble, and the layout is flexible. If the warehouse is moved, the reuse cost is relatively low. In terms of space utilization, the pallet rack can be 10m long when the rack and warehouse are separated. It is equipped with forklift (forklift selection: forward moving battery forklift, balance weight battery forklift, three-way forklift are mostly suitable for low and high-level warehouses for access operations), stacker (electric stacker is available when the system is low, and stacker is generally used for access operations in high-level warehouses), The upper space of the plant or warehouse can be fully utilized to improve the volume ratio of the warehouse. Generally speaking, it is widely used in manufacturing, third-party logistics and distribution centers. It is applicable to both multi variety and small batch goods and small variety and large batch goods. Such shelves are widely used in high-level warehouses and super high-level warehouses (such shelves are mostly used in automated warehouses).
Production technology of heavy pallet shelf
The heavy pallet shelf is formed by rolling high-quality cold-rolled steel plate. The column can be as high as 6 meters without joints in the middle. The cross beam is made of high-quality square steel, with large bearing capacity and no deformation. The hanging parts between the cross beam and the column are cylindrical projections, which are reliable in insertion and connection, easy in disassembly and assembly, and use locking nails to prevent the cross beam from being lifted when the forklift is working; The surfaces of all shelves are treated by pickling, phosphating, electrostatic spraying and other processes, with anti-corrosion and rust prevention, beautiful appearance, and most of them are suitable for large warehouses.
Advantages of heavy pallet shelf
◇ pallet shelf goods can be 100% freely selected
The utilization rate of the pallet shelf is as high as 95%, and the goods can be 100% selected, making the warehouse beautiful and tidy.
◇ pallet shelf height can be adjusted freely
The height of the cross beam of the pallet shelf can be adjusted to meet the pallet height requirements of different goods on the pallet shelf, making your storage more flexible.
◇ it can meet the storage requirements of goods with different weights
The pallet load of the pallet shelf can be customized, and each layer can bear 800-5000 kg, which can meet the storage requirements of different goods.
◇ suitable for use with multiple pallets and forklifts

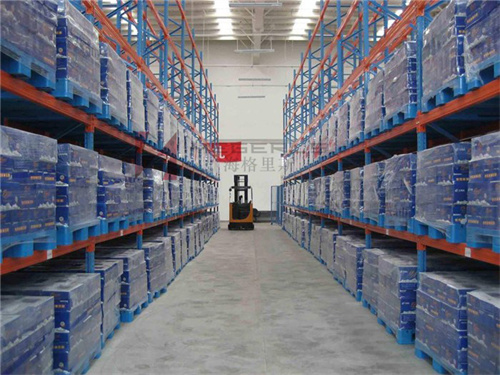

The pallet rack is the most common and simple rack system of the pallet storage equipment system, and it is convenient for disassembly and assembly, and can be suitable for access of various forklifts.
What are the precautions when using heavy pallet shelves?
◇ overload is strictly prohibited: the shelves of each specification are customized according to the demand, and the load is also calculated according to the weight of the goods at that time. The shelves have a large load, and cannot exceed the large load of the shelves during use.
◇ it is strictly prohibited to exceed the shelf width: the design of the shelf is based on the actual needs. The net space of the normal shelf is about 100mm. If the goods exceed this size, it may cause danger.

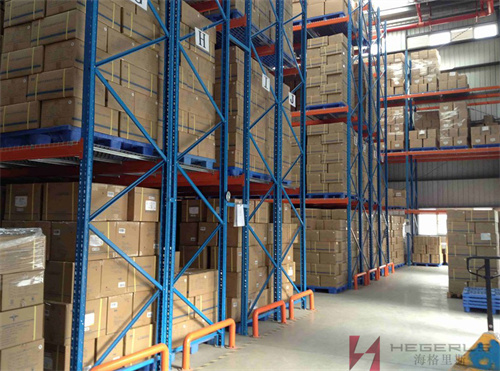

◇ no forklift collision: the shelves will be handled by forklifts during use. Anti collision barriers or foot guards shall be set at the forklift passage to prevent the forklift from hitting. The shelves in Xuancheng are all connected together, and they are prone to failure due to multiple impacts.
◇ regular inspection: daily inspection shall be carried out for the use of shelves. Heavy pallet shelves, especially the connection between beams and columns, shall be handled in time to avoid unnecessary damage.
Hegerls is a storage service enterprise integrating R & D, design, production, manufacturing, sales, installation and after-sales. It mainly produces: light, medium and heavy storage shelves, cantilevered shelves, mold shelves, through shelves, attic shelves, narrow lane shelves, drive in shelves, shuttle car shelves, roller shelves, large, medium and small warehouse shelves, warehouse shelves, fluent strip shelves Steel platform, cantilever frame platform, isolation net, steel tray, flexible fixed frame, folding material rack, storage auxiliary equipment and various non-standard shelves and storage equipment products. The company constantly absorbs advanced design concepts at home and abroad to improve the production process. From the whole set of production lines such as raw material special profile rolling, product welding and processing, surface treatment, electrostatic spraying and product assembly, to the construction and installation of * and fast after-sales service team, the company has made continuous efforts to improve the process, improve the quality and optimize the service direction.
Post time: Aug-12-2022
