High Density Warehouse Storage Radio Shuttle Pallet runner car for semi and full automatic warehouse

Short Description:

MOQ 1 set
Place of Origin Hebei, China
Delivery Time 90 Days
Payment terms L/C,D/A,T/T, Western Union

(1)Input (2) Output(3)Continuous input(4) Continuous output (5) Move pallet(6)Inventory(7) First in first out (8) First in last out(9)Original point(10)Remote point

Pallet size
Shuttle runner(NO) WIDTH(mm) DEPTH(mm)
HEGERLS-1210 1200 800,1000
HEGERLS -1211 1200 1100
HEGERLS -1212 1200 1200
HEGERLS -1311 1300 1100
HEGERLS -1214 1200 1400
HEGERLS -1412 1400 1200
HEGERLS -1217 1200 1700

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • functions: functions
  • Product Detail

    Equipment and package

    Product Tags

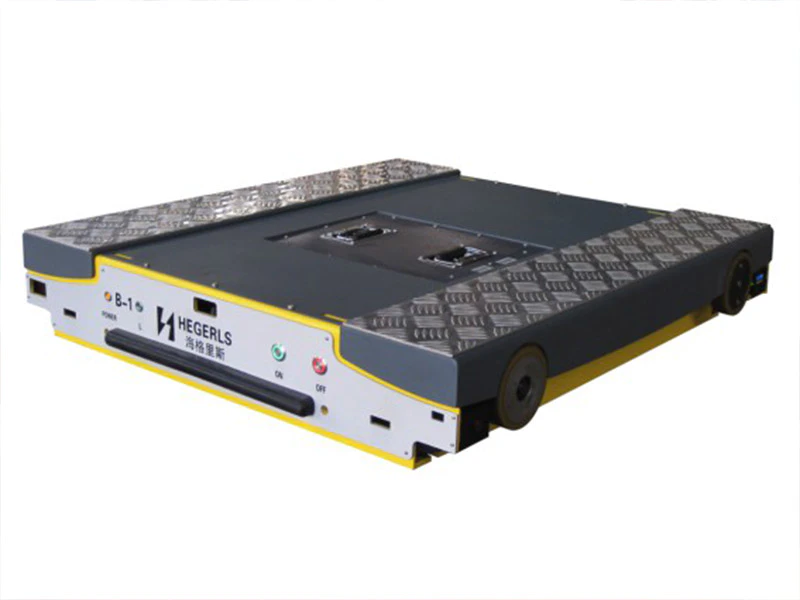

    HEGERLS radio shuttle runner

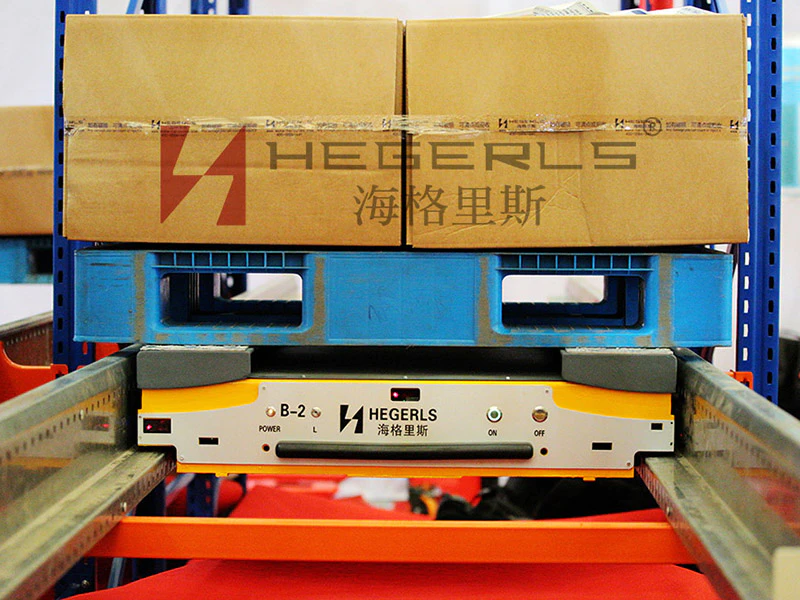

    Radio shuttle could be combined with the use of manual forklift, the storage and transportation of goods separately, wireless remote control of the radio shuttle to complete the function of storage of goods, use manual forklift to complete the transportation of goods.

    Forklift truck does not enter the cargo storage area, only in the storage area at the end of operation, the shuttle on the goods into the designated location. Cargo storage instructions are from the forklift operator through the wireless remote control, the operator can also terminate the wireless remote control of the radio shuttle.

    The first location on the rack is for forklift to release the pallets, which could be first in first out or last in first out.

    HEGERLS Radio shuttle specification

    ITEM Specification Remark
    Loading Max 1500kg
    Moving Speed Unloading:0.8~1.2m/s, loading:0.6~0.8m/s
    accelerate ≤0.5m/S2
    Motor 24VDC  550W
    Lift Height 35mm
    Motor 24VDC  370-550W
    Position move: Laser Germany
    Location: Laser Germany
    Lift Switch SICK
    Sensor Photoelectrical P+F/SICK
    Controller S7-200 PLC SIEMENS
    Controller Frenquency433MHZ,Communication distance 100m TELE-RADIO
    Two-way communication function, with LED screen
    Power Lithium iron phosphate power battery
    Battery Specification 24V,60A,Working time≥8h power 3h,power times:1000PCS
    Noise level ≤60db
    Temperature -25~50℃
    Protector End face placement polyurethane buffer strip and anti loading sensor

    Features & Benefits
    ◆ Independent patent on lifting mechanism, higher efficiency, more power saving
    ◆ Electrical procedures to achieve better performance.
    ◆ All parts surface are with Nickel plating
    ◆ Are welding are with Carbon dioxide arc welding and argon arc welding
    ◆ The frame parts surface is with spray processing. The color can be customized.The aluminum alloy panel is treated by sand blasting sun








  • Previous:
  • Next:

  • techical equipments.

    workshop and equipment

      Package and loading


    Exhibition booth

    on the fair pin1

    Customer visiting

    Euro client visiting pin1

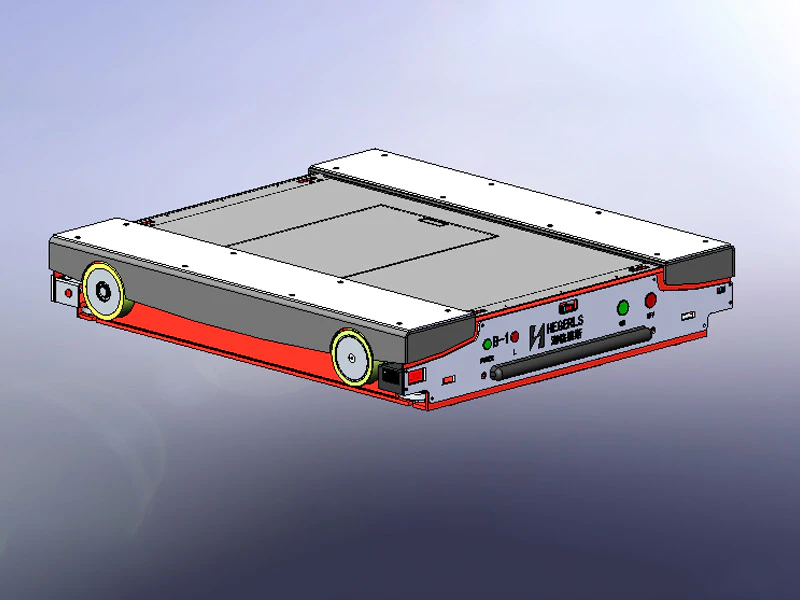

    Free Layout drawing design and 3D picture
