china factory electrical mobile pallet racking system with 100% selective

Short Description:

Brand HEGERLS
MOQ 1 set
Place of Origin Hebei, China
Delivery Time 90 Days
Payment terms L/C,D/A,T/T, Western Union


Product Detail

Equipment and package

Product Tags

HEGERLS mobile racking
Only one passageway to be used, the high sealed-space utilization, better appearance practical, widely used in archives, library, b company document, etc.

Features & Benefits
◆ It can use the space of the warehouse than normal racking.
◆ It is fit to the few kinds large amount goods.
◆ The rate of utilization of the ground could reach to 80%.
◆ You can deal with each good, not first-in,first-out.
◆ The height of the racking could be 12m.
◆ Using electric equipment, it is hard to maintain.
◆ High cost, long time to finish the system.
◆ The guard rail should be place under the ground so that the shuttle car could pass away.

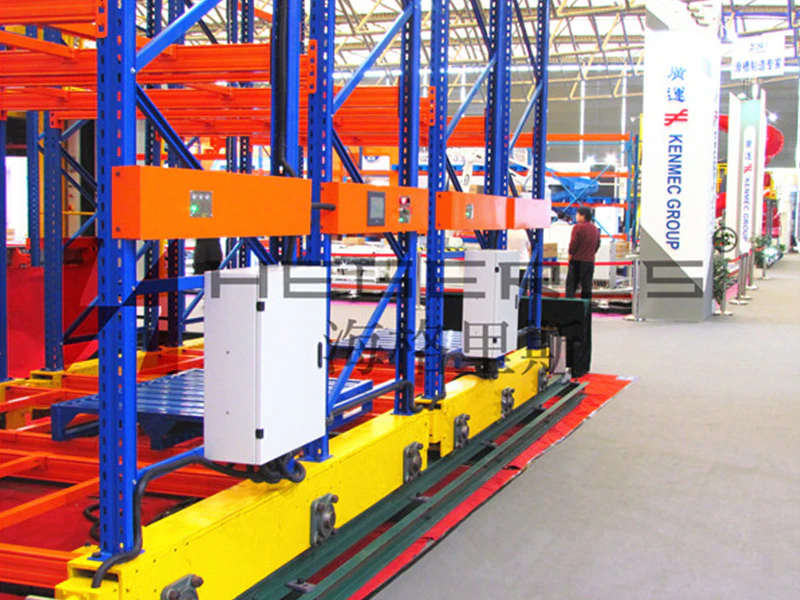

15625469556945

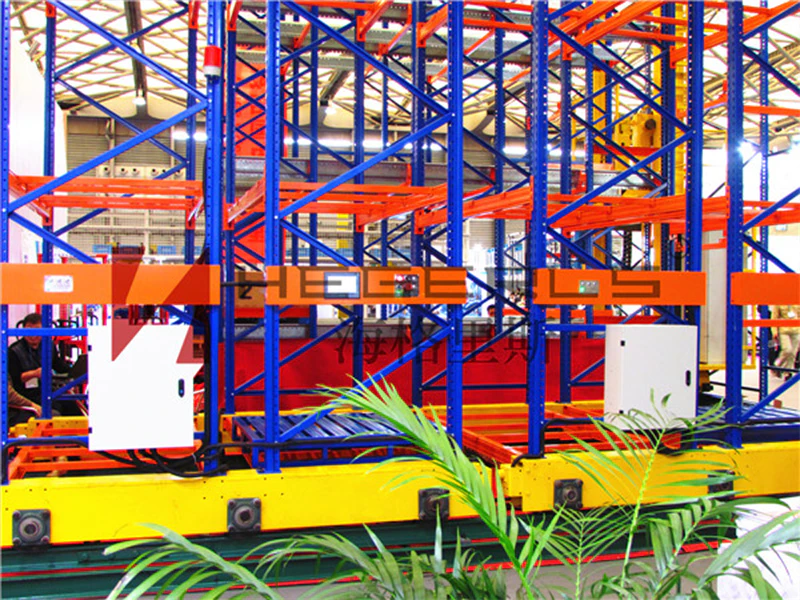

15625469359623

HEGERLS mobile rack 2021 high quality 3000kgs per layer driven by motor
. We devote ourselves to warehouse storage field for 25 years experience. We are expecting become your long term partner in China.

HEGERLS mobile rack 2021 high quality 3000kgs per layer driven by motor

1.Product introduction of mobile rack
Only one passageway to be used, the high sealed-space utilization, better appearance practical, widely used in archives, library, b company document, etc.
.
2.Product parameter.

Upright

Box beam

Ground rail

Motor

PLC

80*70/90*70/100*70 80*50/100*50/120

*50

Under the ground

Lenze

Siemens

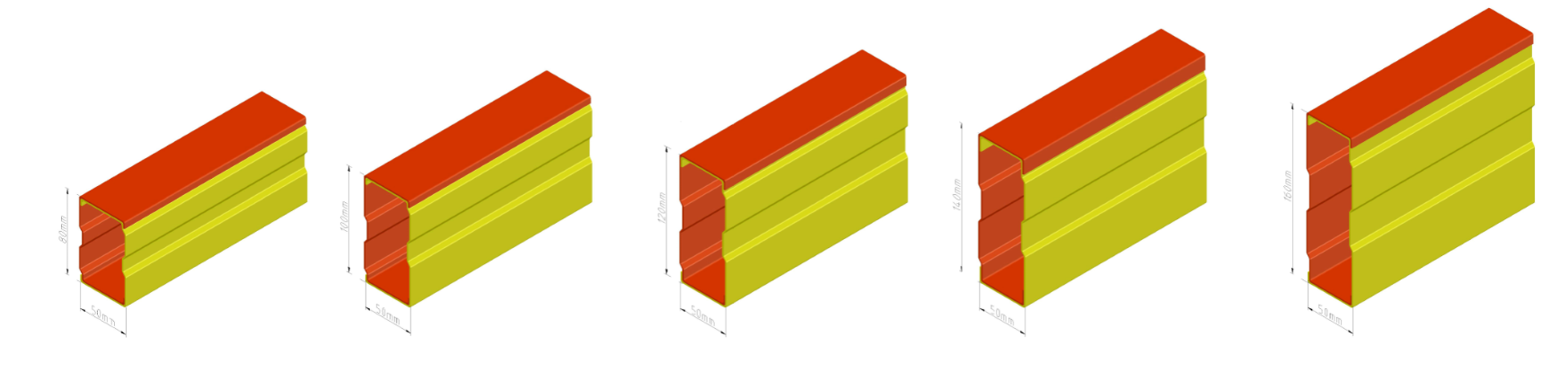

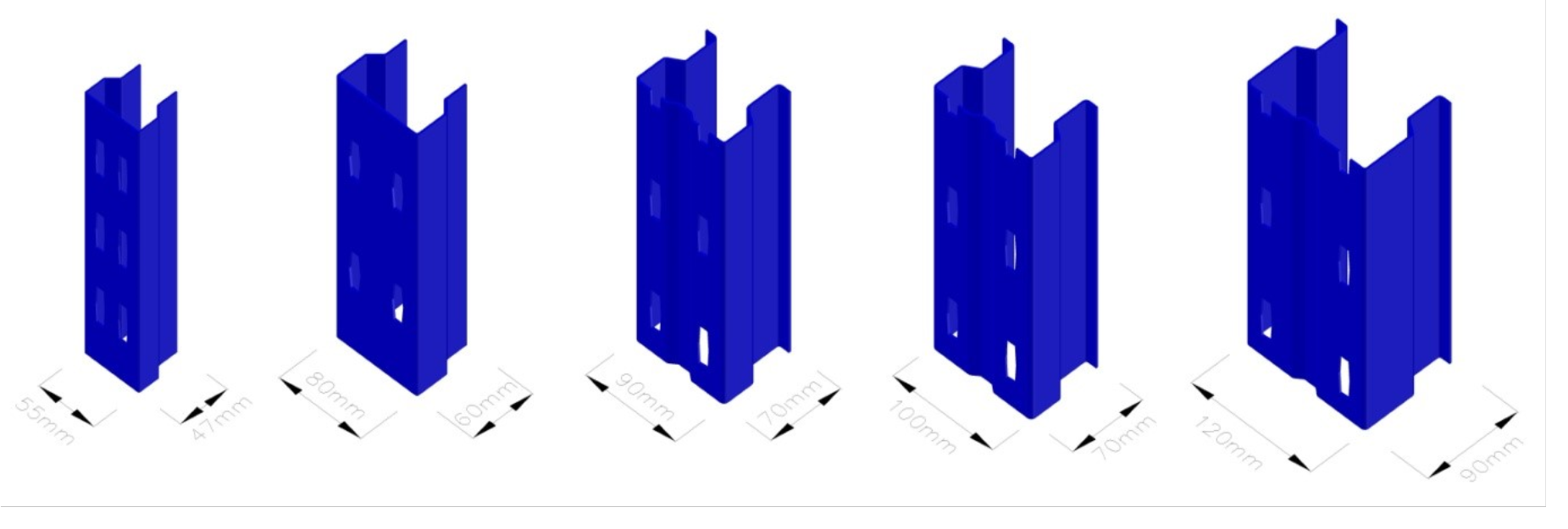

HEAVAY (1) HEAVAY (3)

3.Product feature and application

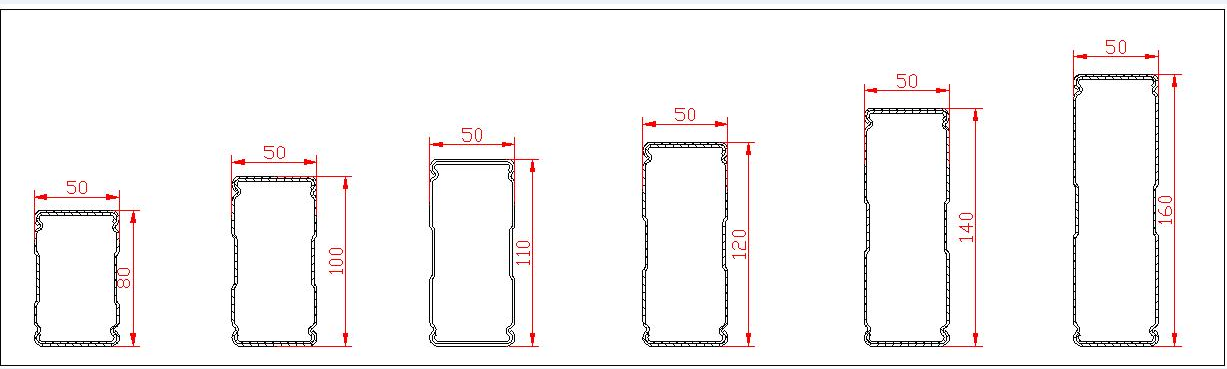

3.1 box beam specification

iuy (5)

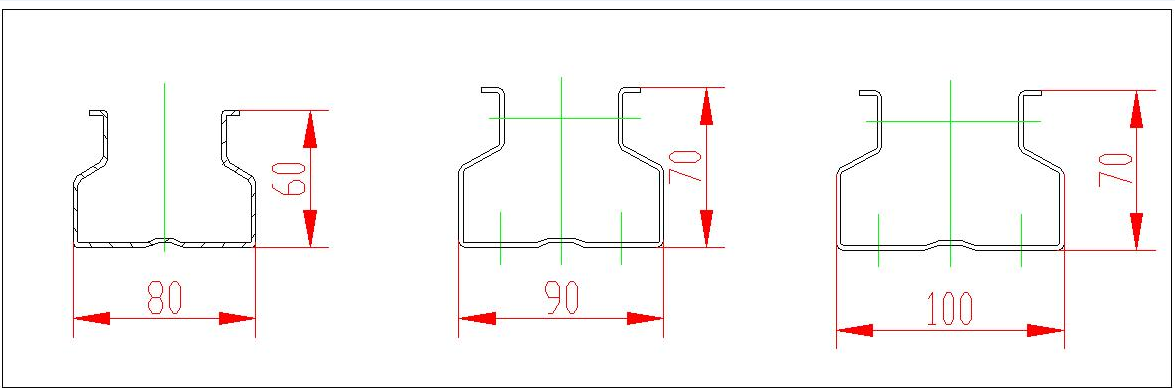

3.2 Upright specification

iuy (6)

4.Production detail of mobile rack

4.1It can use the space of the warehouse than normal racking.

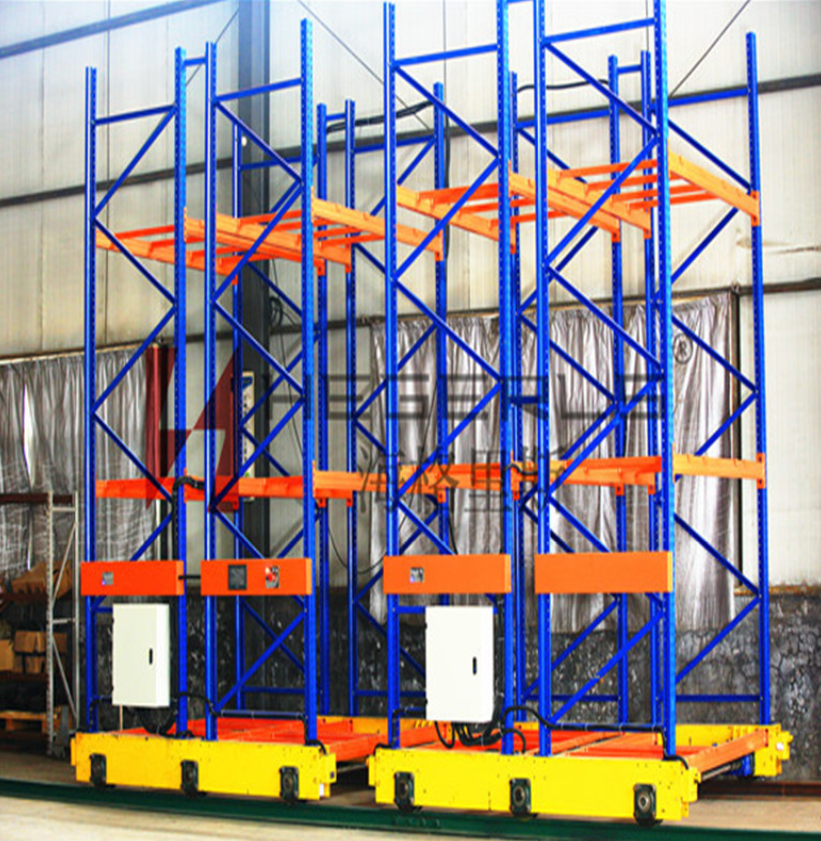

iuy (8)

4.2It is fit to the few kinds large amount goods.

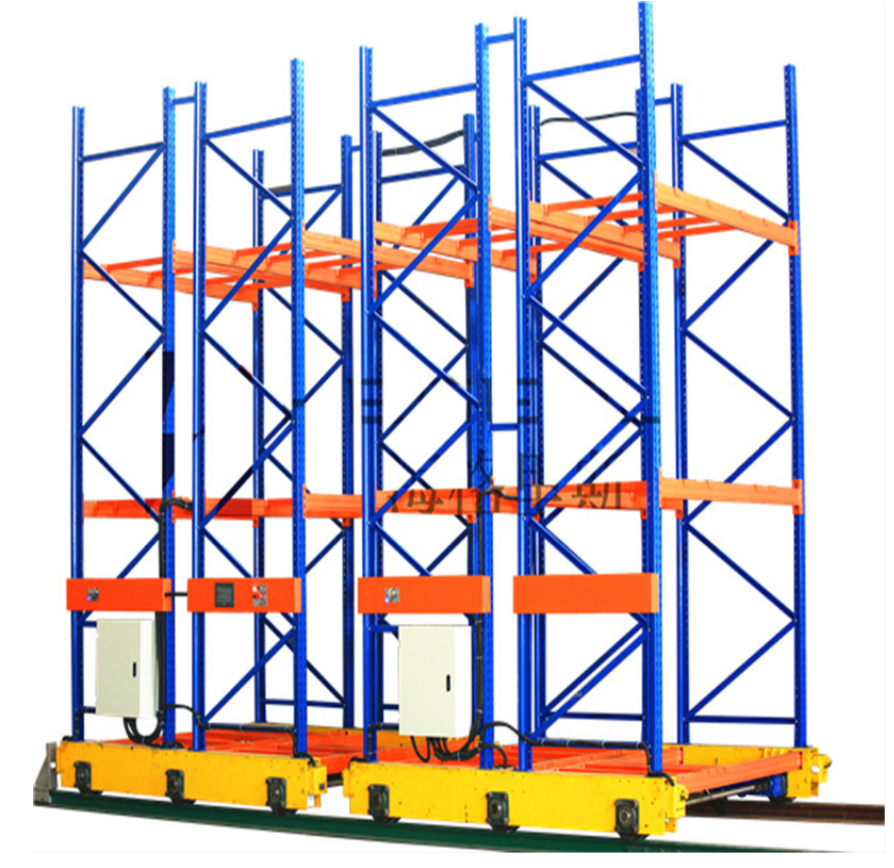

iuy (27)

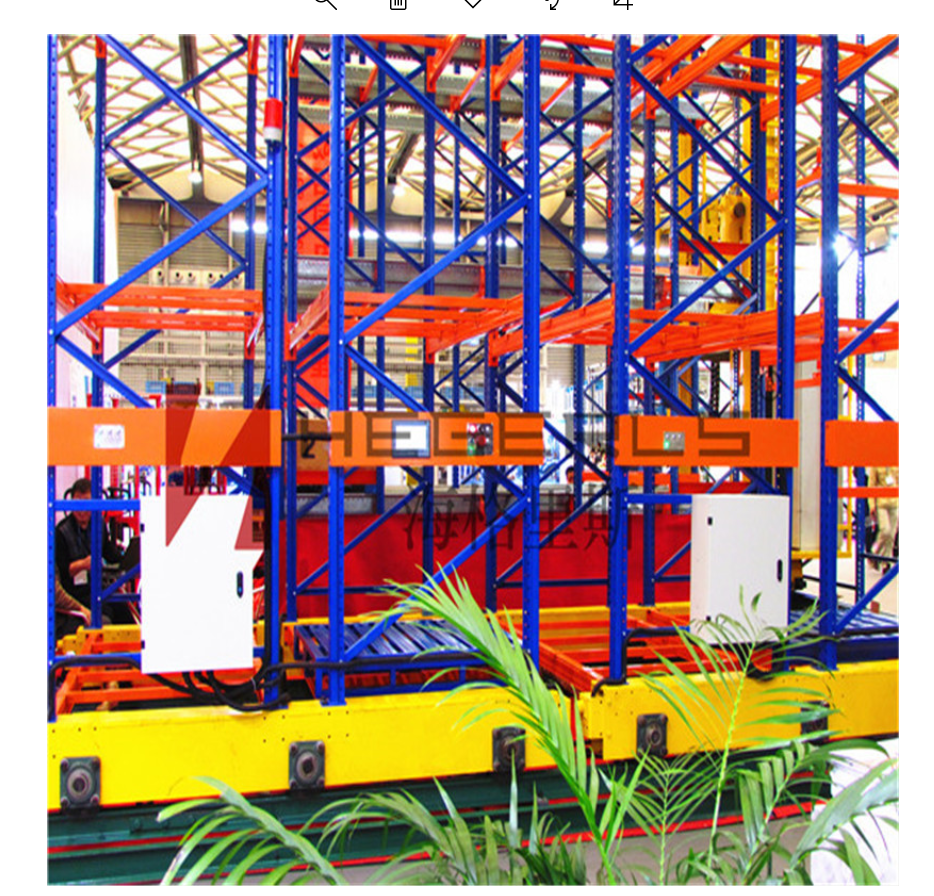

4.3The rate of utilization of the ground could reach to 80%.
iuy (28)

4.4You can deal with each good, not first-in,first-out.

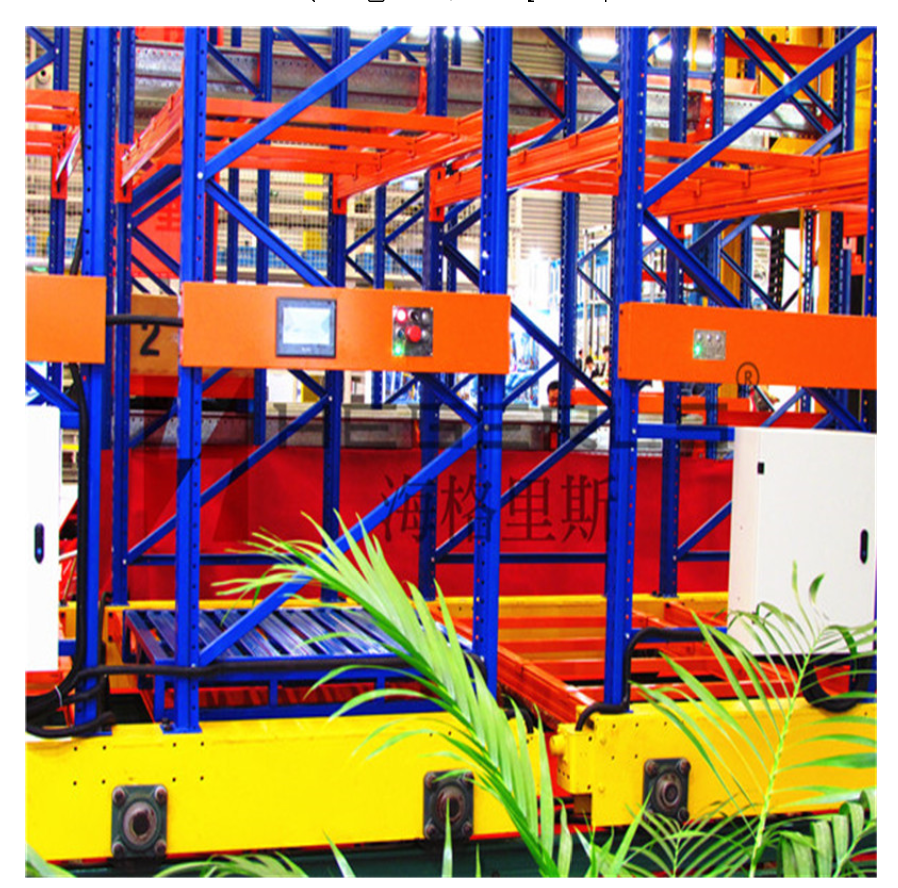

iuy (29)

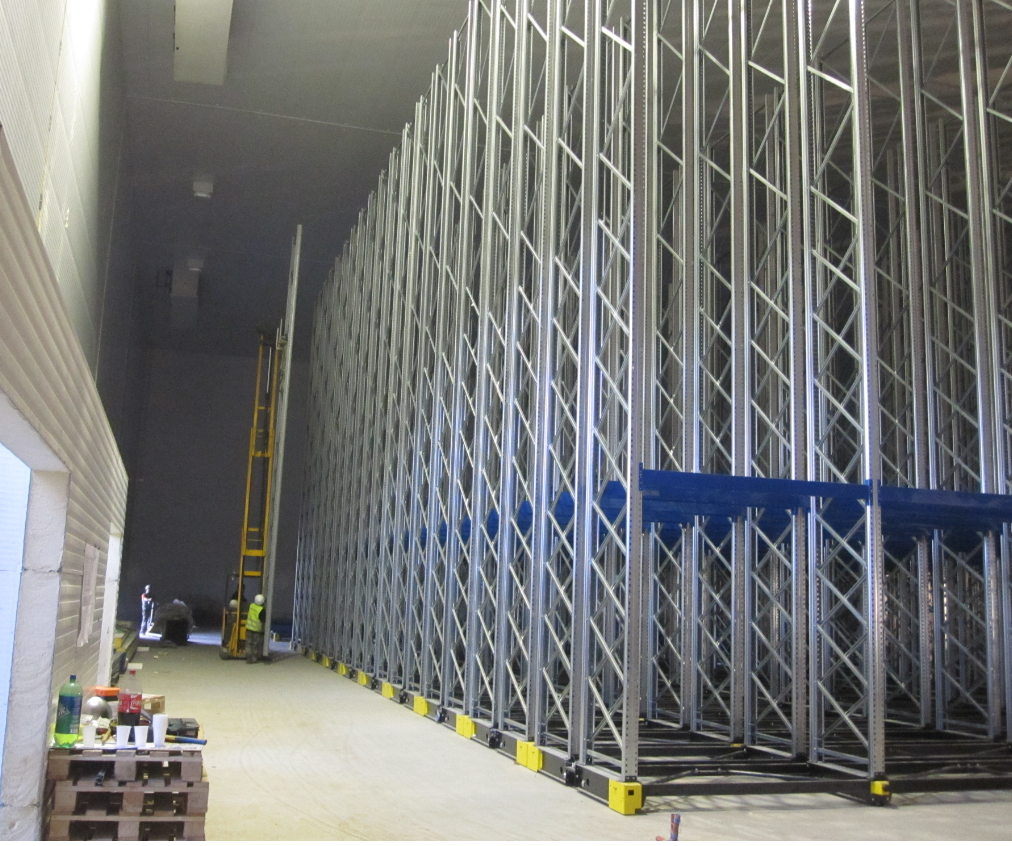

4.5The height of the racking could be 12m.
iuy (30)

4.6Using electric equipment, it is hard to maintain.

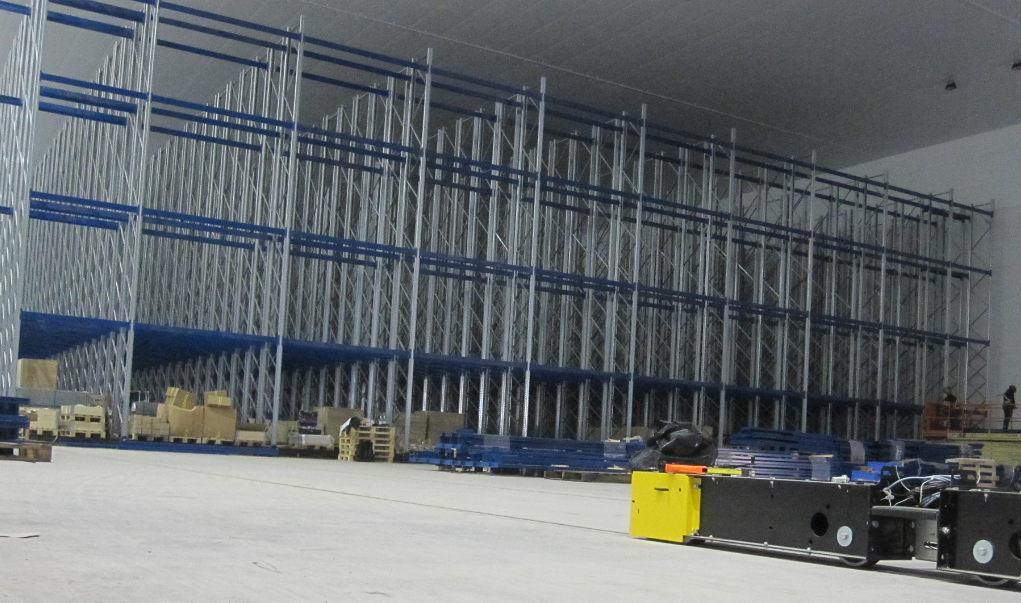

iuy (31)

4.7High cost, long time to finish the system.

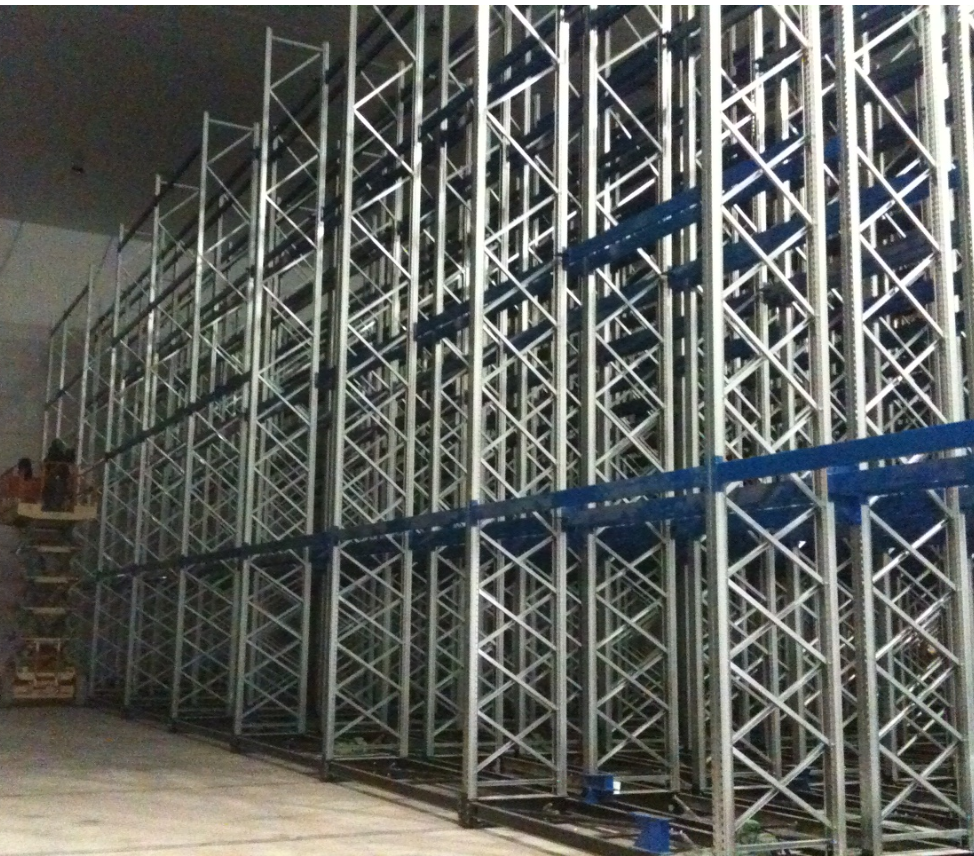

iuy (32)

4.8The guard rail should be place under the ground so that the shuttle car could pass away.

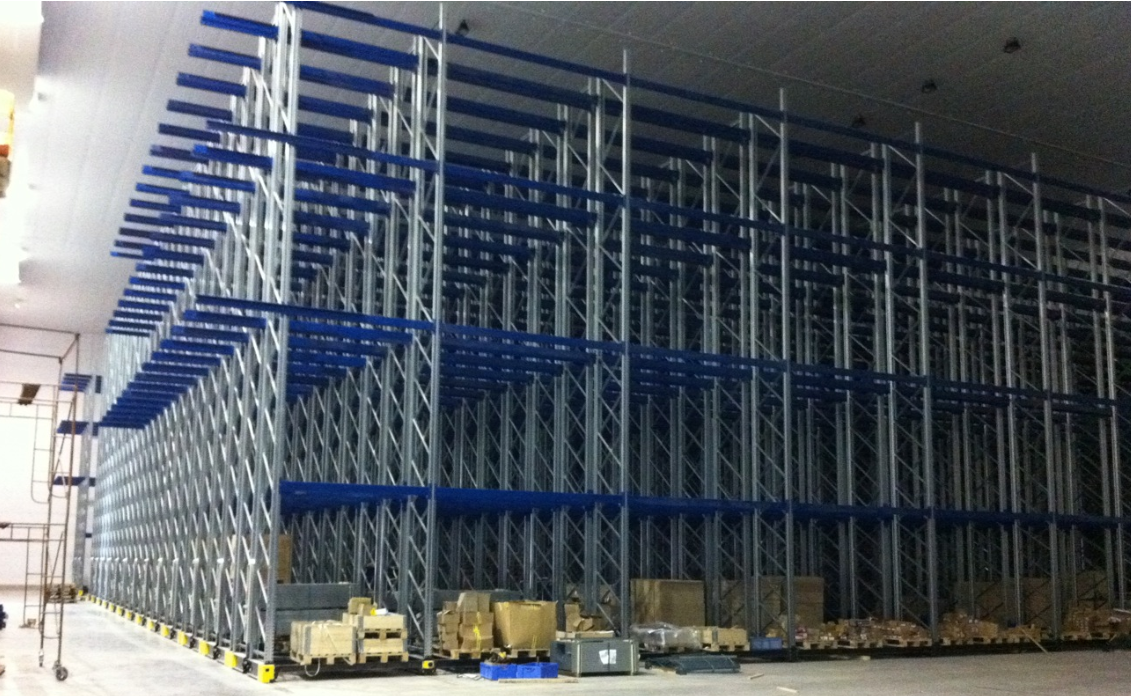

iuy (33)

Products qualification of mezzanine rack system
5.1 we have passed the certificate of SGS.BV,TUV and ISO quality control certificate.
Furthermore, we also have passed the certificate of environment management, health and safety management
5.2 Raw materials: cold rolled steel Q235B. or international steel standard SS400
5.3. rolling machine. We have 12 sets rolling line, could roll different size.
5.4 Power coating line. It is 500 meters long and the brand of power coating gun is GEMA, which is very famous on the coating field.
5.5 customer visiting. Our location is in hebei province, near to Beijing and Tianjin. Our airport name is Shijiazhuang zhengding international airport. Welcome your visiting any time.
5.6 exhibition. Every year we will attend canton fair and shanghai Cemat fair.

cer

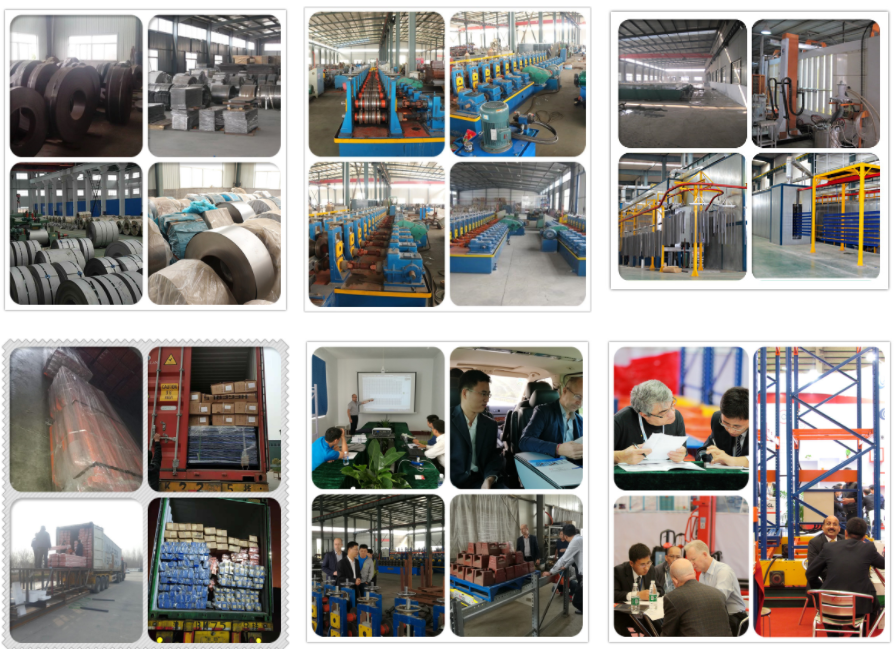

fac

Delivery. Shipping and service
6.1 Packaged and shipping. Normally, the upright will be packed by plastic foams. And shuttle racking will be loaded into wooden pallets.

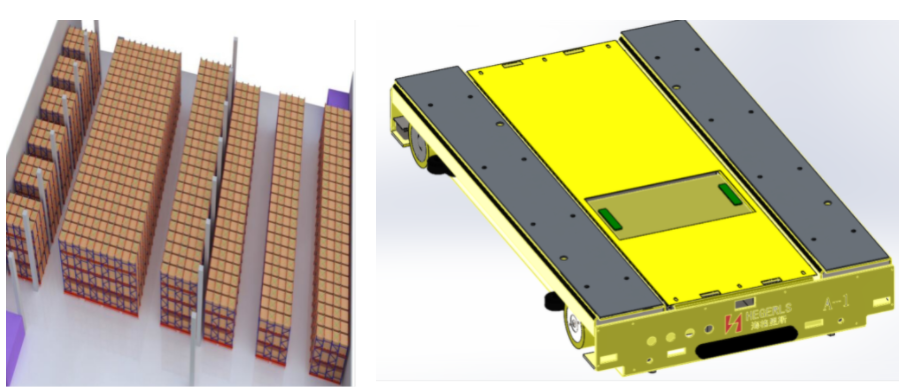

6.2 We provide layout drawing and 3d effect picture
yt
FAQ
Q: What is the quality warranty of your products ?
A: Our quality warranty is 1 years. We will keep on providing the service out of this time and only offer cost of spare parts.
Q: What is the lead time ?
A: For the racking system, it normally take 30 days. And for the shuttle racking, it need 60 days for the production.
Q:Could you provide the layout design ?
A: Yes, we could provide the layout design freely in Autocad or 3d picture. It is our free service.
Q:What color cold be available ?
A: Normally, we have color of blue RAL5005 and orange RAL2004. The color could also be customized. Please provide us your color number.
Q:how about the installation?
A: We will provide the detailed installation drawing. For the simple traditional racking, the workers could install it according to our drawing. Or else, our engineer could go to on site to instruct the installation And buyer will afford the cost.

Latest news

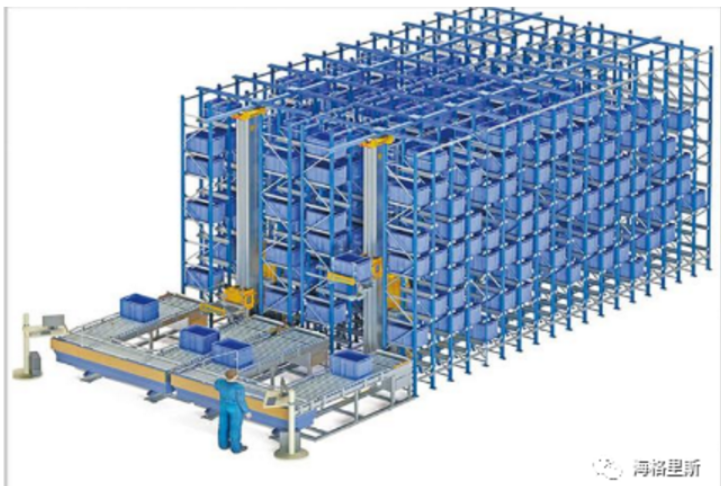

The core equipment of automated warehouse-stacker

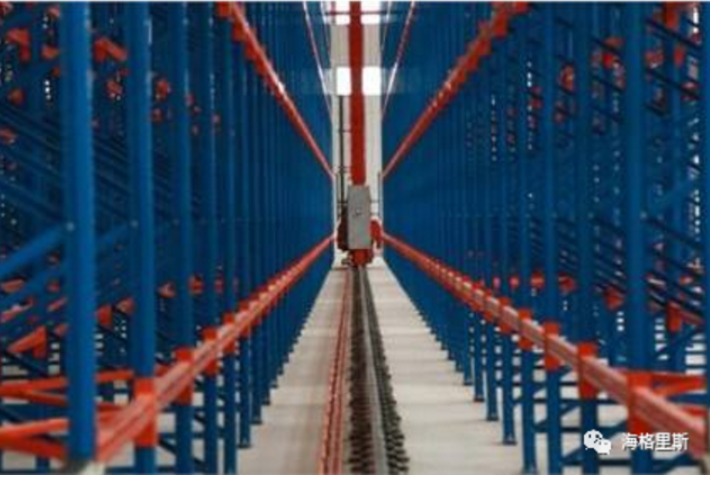

Tracked roadway stacking crane is a special crane developed with the appearance of the three-dimensional warehouse, referred to as the stacker, is a very important lifting and handling equipment in the three-dimensional warehouse, and is a symbol of the characteristics of the three-dimensional warehouse. Its main purpose is to run along the track in the roadway of the high-rise warehouse to store the goods at the entrance of the roadway into the cargo compartment; or to take out the goods in the cargo compartment and transport it to the entrance of the roadway to complete the warehousing operation.

There are many types of stacker cranes. In the current three-dimensional warehouse applications, the most common is
1. According to the structure, it is divided into single column structure and double column structure
2. According to the running track classification, it is divided into linear type and curved type
No matter what type of stacker crane is generally composed of horizontal walking mechanism, lifting mechanism, loading platform and fork mechanism, frame and electrical equipment and other basic parts. The walking motor drives the wheels to move horizontally on the lower rail through the drive shaft, the lifting motor drives the cargo platform to move vertically through the chain/wire rope/belt, and the forks on the cargo platform do telescopic movement. The walking address finder is used Control the stacker's horizontal walking position, and raise the address finder to control the lifting position of the loading platform; through the address finder and photoelectric recognition, and the conversion of communication numbers, computer control can be realized, and automatic, semi-automatic and manual control can also be realized through the control panel .
At present, in my country's three-dimensional warehouses, stackers are widely used in industries such as machinery manufacturing, automobile manufacturing, textile industry, railways, cigarettes, and medicine. With the development of modern industrial production, the technology of tracked roadway stacker cranes is constantly improving and perfecting. Since 2017, Hegerls has obtained the new shape and new function stacker patent. It has continued to summarize experience and is committed to development and practicality. We have been very serious about building a three-dimensional warehouse for new products with safety and security!
