high density four way radio shuttle runner cart

Short Description:

China four way radio shuttle is full automatic warehouse storage solution, it could not move on the X direction, but also move on the Y direction, the shuttle cart could go to each layer via lift. In this way the shuttle can change lanes without operation of forklift, greatly save labor cost and improve warehousing efficiency.it is high density storage solution and could utilize the space 100%.widely used in the industry of Food&beverage, chemical, third party logistics etc

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

Product Detail

Equipment and package

Product Tags

China hegerls four way radio shuttle is full automatic warehouse storage solution, it could not move on the X direction, but also move on the Y direction, the shuttle cart could go to each layer via lift. In this way the shuttle can change lanes without operation of forklift, greatly save labor cost and improve warehousing efficiency.it is high density storage solution and could utilize the space 100%.widely used in the industry of Food&beverage, chemical, third party logistics etc

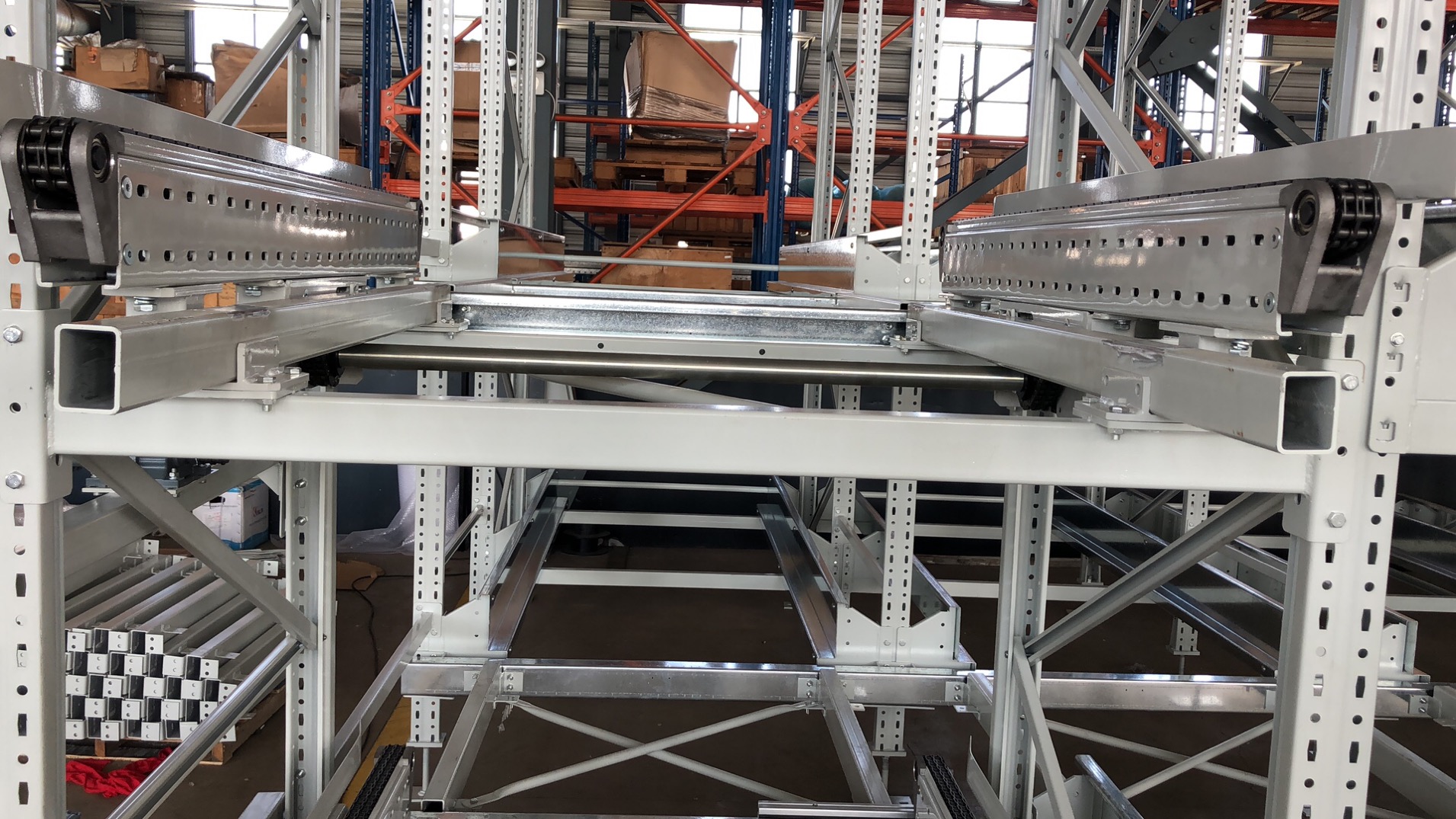

微信图片_202107261123271

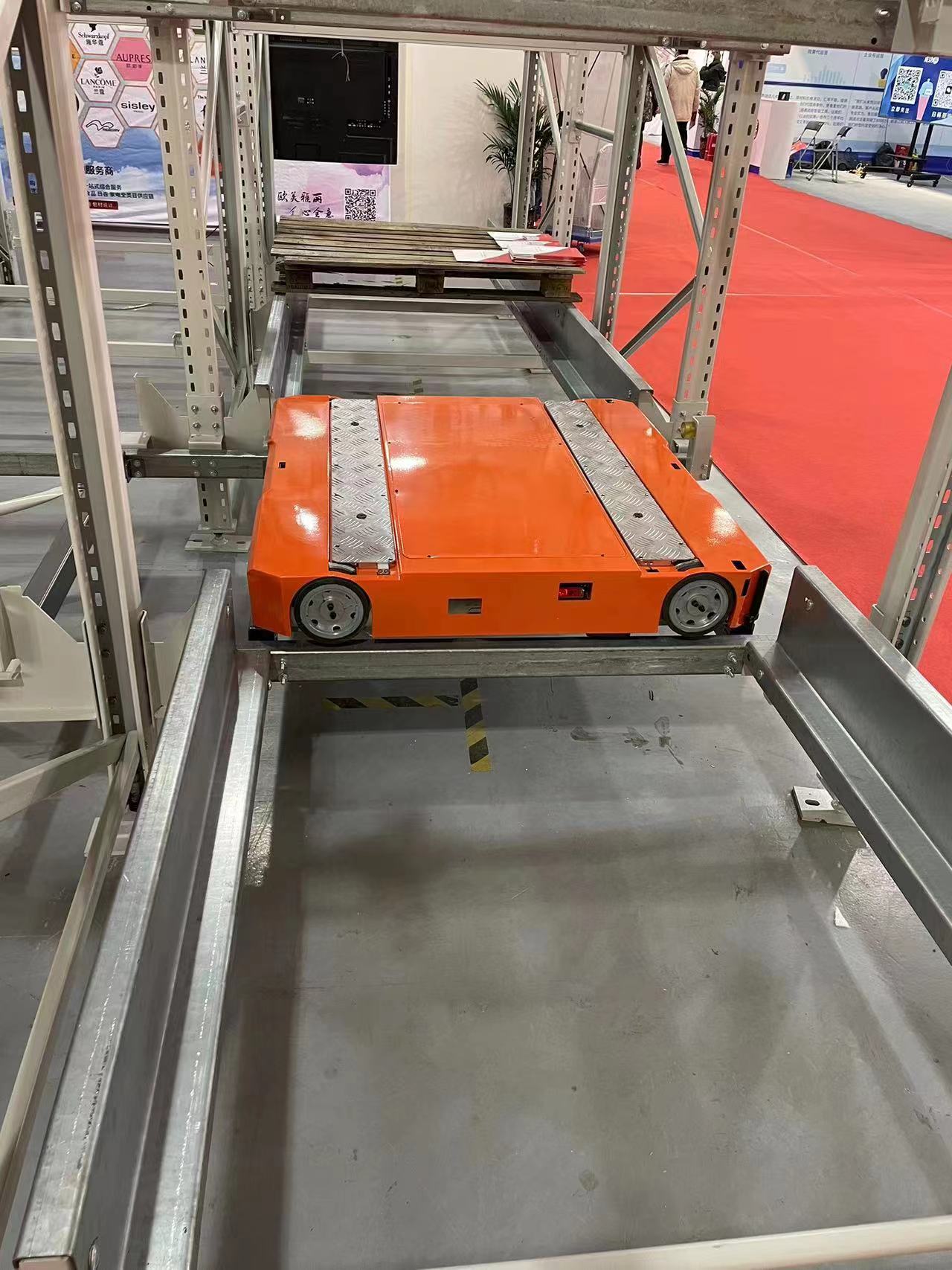

微信图片_202212281353342

No	Item	Specification	Unit
1	Weight	430	kgs
2	Loading	1500	kgs
3	Location	2	mm
4	Temperature	minus 5 to 45	C
5	Battery	48V/40AH	V/AH
6	Battery weight	13	kgs
7	Working time	8-10h	hours
8	Charging time	1-2h	hours
9	Moving motor power	1.1	KW
10	Lift motor power	0.8	KW
11	Height	38	mm
12	lift board length	1136	mm
13	lift board width	120	mm
14	lift board height	11	mm
15	lift board center	572	mm
16	wheel base main aisle	876	mm
17	wheel base secondary aisle	700	mm
18	Moving speed(loading/unloading)	1.2/1.4	m/s
19	Lift speed(loading/unloading)	1.3/1.3	mm/s
20	Down speed (loading/unloading)	1.3/1.3	mm/s
21	accelerate speed	0.3	m/ss
22	changing direction time	3	s
23	lift time	3	s
24	driving wheel	16060/11060	mm
25	main aisle moving tyre	1138	mm
26	secondary aisle moving type	984	mm
